MOSAIC’s Main Board is the central hub of the mocksat, connecting together all other components. This board contains the entire MOSAIC Command and Data Handling (CDH) subsystem. The command duties are performed by a swappable computer processor at the center of the board. Data storage is fulfilled by equally swappable modules that connect to the board.

However, MOSAIC’s Main Board is much more than the CDH subsystem. Also included are two slots for interchangeable function boards. These boards add functionality to the Main Board, like environmental sensors and radio communication.

Based on MicroMod Main Board - Double

MOSAIC's Main Board design is based on the MicroMod Main Board - Double from Sparkfun electronics.

All Sparkfun MicroMod processors and function boards are compatable with MOSAIC's Main Board.

Open MOSAIC

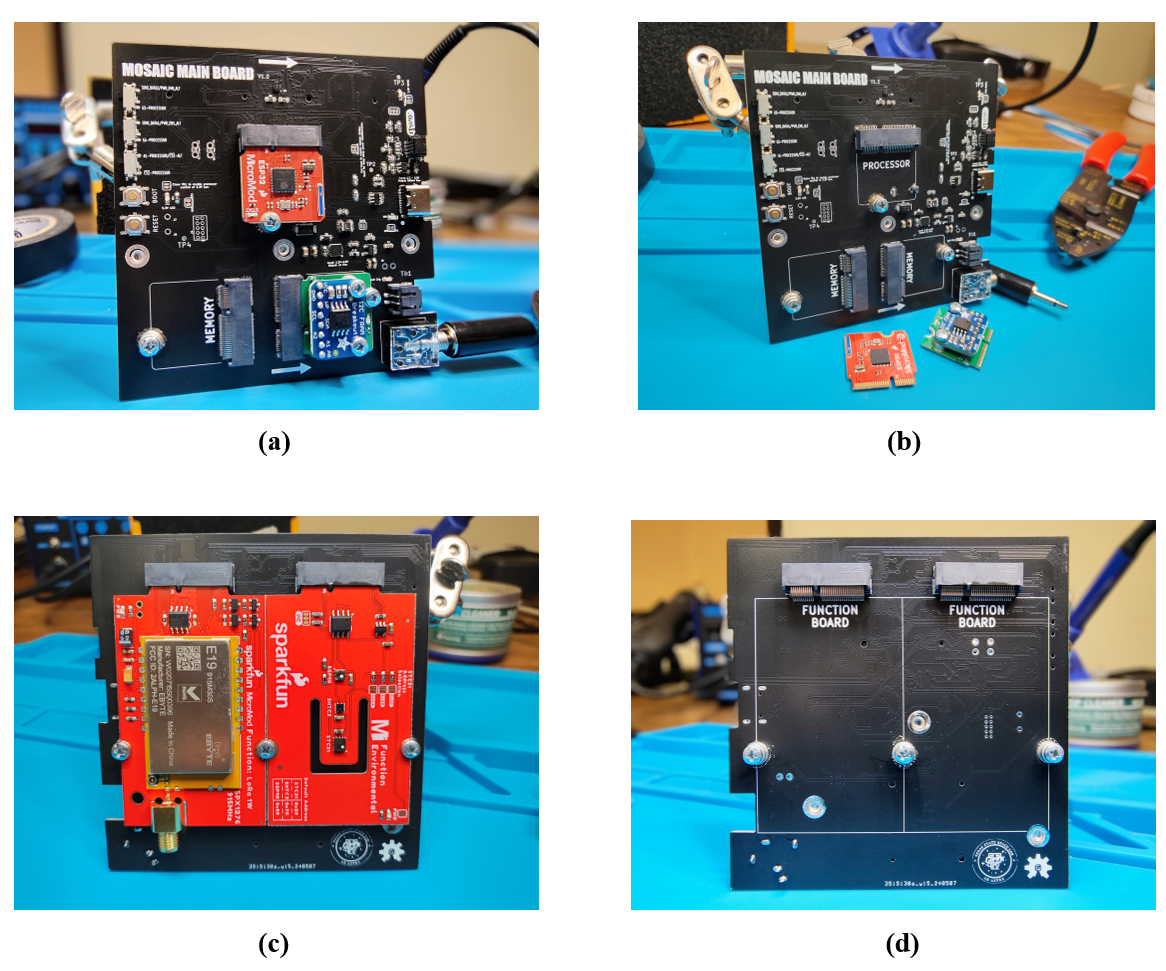

Figure 1: MOSAIC Main board (a) top with attached processor and memory module, (b) top without attached modules, (c) Bottom with two function boards attached, (d) bottom without attached function boards

Features

Customizable -

Five M.2 slots on MOSAIC's Main Board allow users to to customize their boards with three different kinds of modules:

Module Type Board Location Number of Slots Description

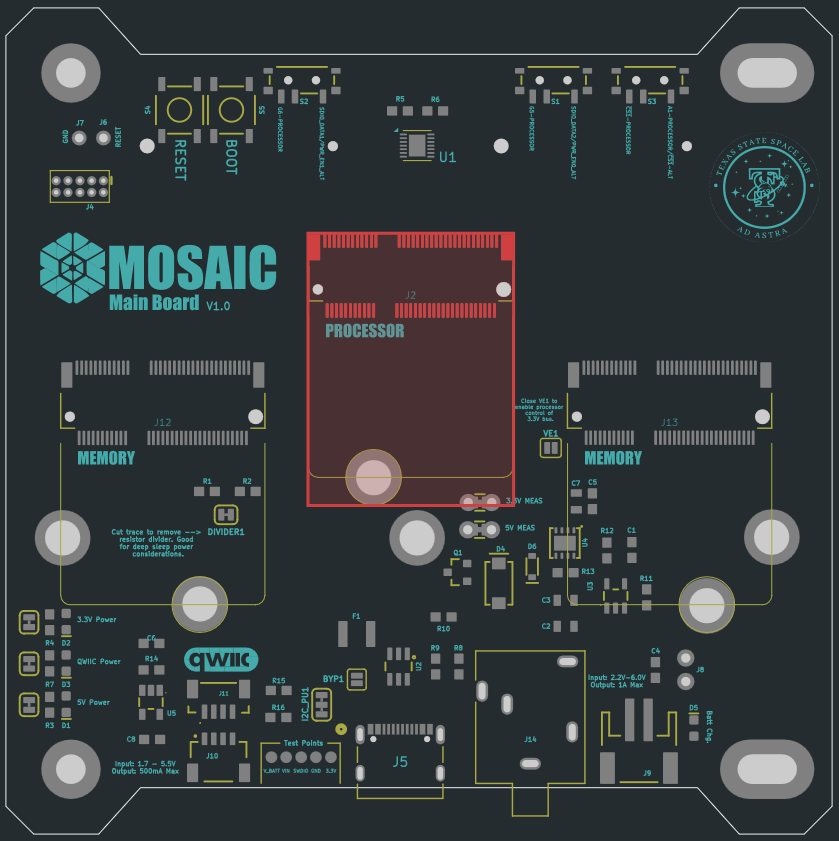

Processor Front Highlight Processor Location 1 Brain of the satellite.

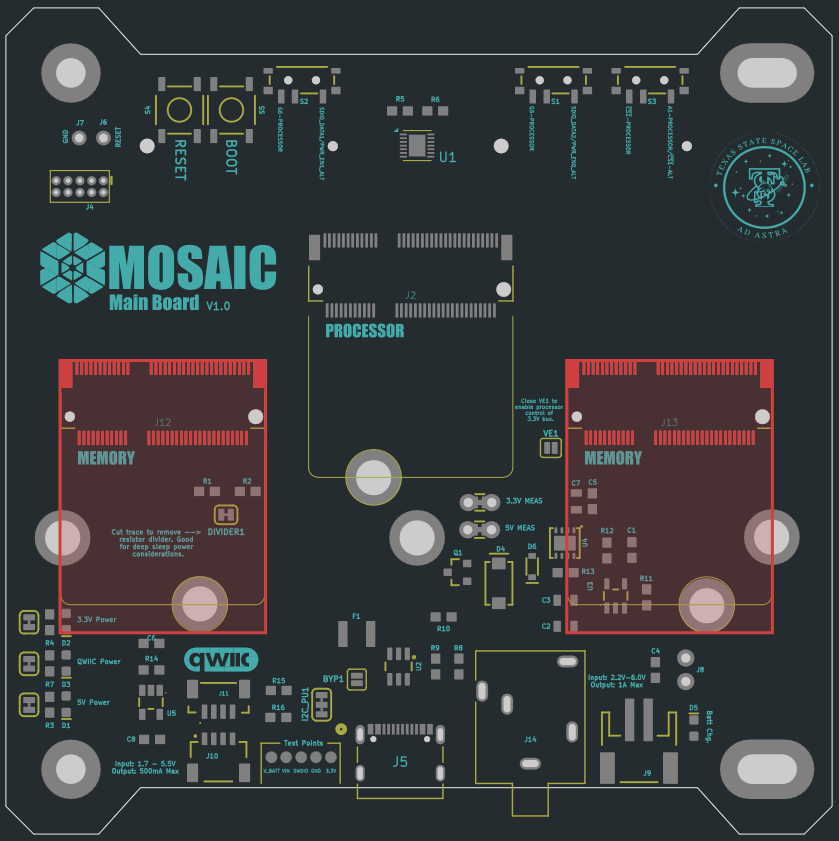

Expandable Memory Front Highlight Memory Module Locations 2 Expandable memory storage beyond what's included in the processor modules.
Function Boards Back Highlight Function Board Locations 2 Add functionality to the board like radio transceivers and GPS.

Standard -

The following are non-customizable features that are standard on all on MOSAIC Main Boards:

Feature Description Datasheet
USB/Battery Voltage Regulator Input: 2.2V-6V; Output: 1A max AP7361C
Qwiic Voltage Regulator Input: 1.7-6V; Output: 500mA max, fixed 3.3V XC6503D331MR-G
Built-in Resettable PTC Fuse Rated 5V/2A ASMD1210
2-Pin JST Connector For connecting LiPo battery JST-PH 2-pin SMT
Single Cell LiPo Charge Circuit Charges attached single cell LiPo battery from USB power source MCP73831
USB Type C Connector For data connection with attached processor module and power transfer USB Type C Connector
2x Qwiic Connectors For data connection between other MOSAIC boards using the I2C protocol Qwiic Connector
SWD 2x5 Header Serial Wire Debug header used for programming and debugging microcontrollers N/A
Multiplexer for UART1 For pin management between the two function board slots and the Main Board processor MAX4932ETD+T
Boot and Reset Buttons For programming an attached Main Board processor Tactile Switch
3x I/O switches For pin management between the two function board slots and the Main Board processor Slide Switch
